Description: pantograph car lift PTXSC

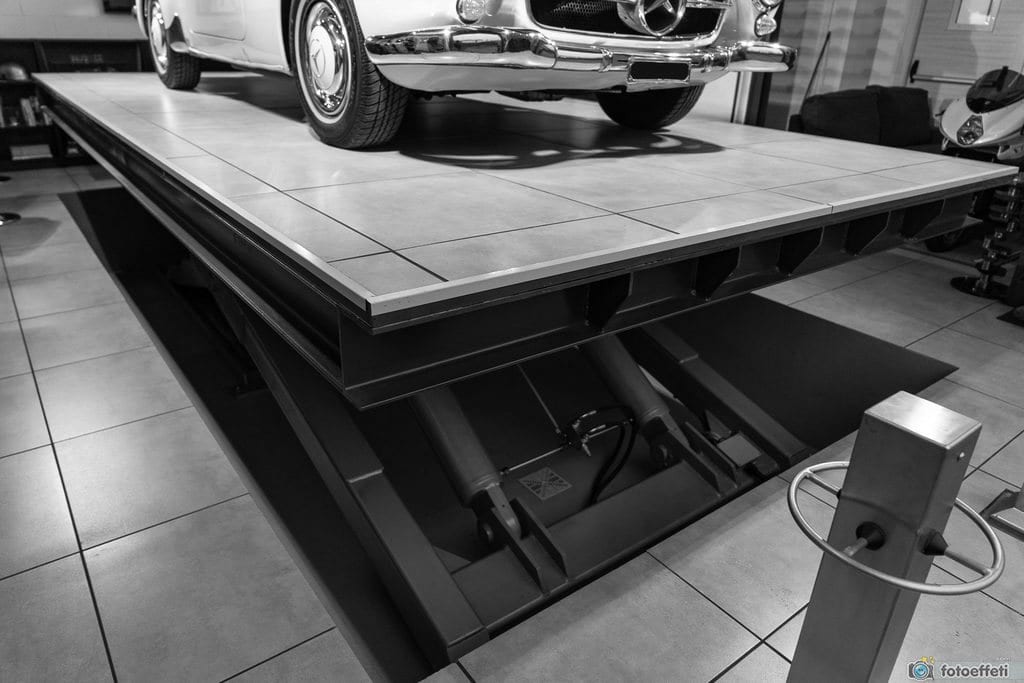

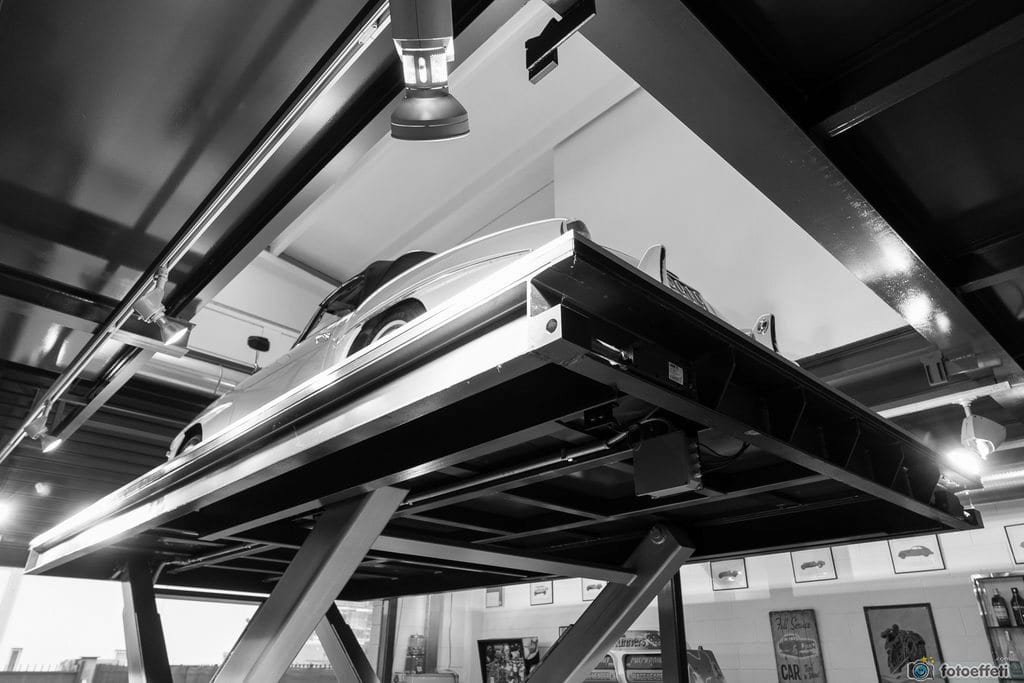

Our pantograph car lift enables the smooth transport of cars between different floors, with the travel determined by the size of the platform and the scissor lift system. A distinguishing feature is the complete freedom of the platform, which allows installation even in passing areas.
Made from high-quality materials and fully machined after the welding process, it allows installation even for display purposes. Every component, from wheels to sprockets, is mounted on ball or roller bearings, to ensure minimum friction and maintenance, as well as maximum precision in movement.
We also offer the possibility of installing the “Man on Board” kit, with which the driver, after parking the vehicle on top of the platform, can operate the system without getting out of his vehicle. The cycle is started via push-button panel without restraint.
Technical features
- Platform width: Variable
- Platform length: Variable
- Useful capacity: 3500kg
- Pit depth: Variable depending on the required strokes and customer's needs
- Possibility to install the “Man on board” kit

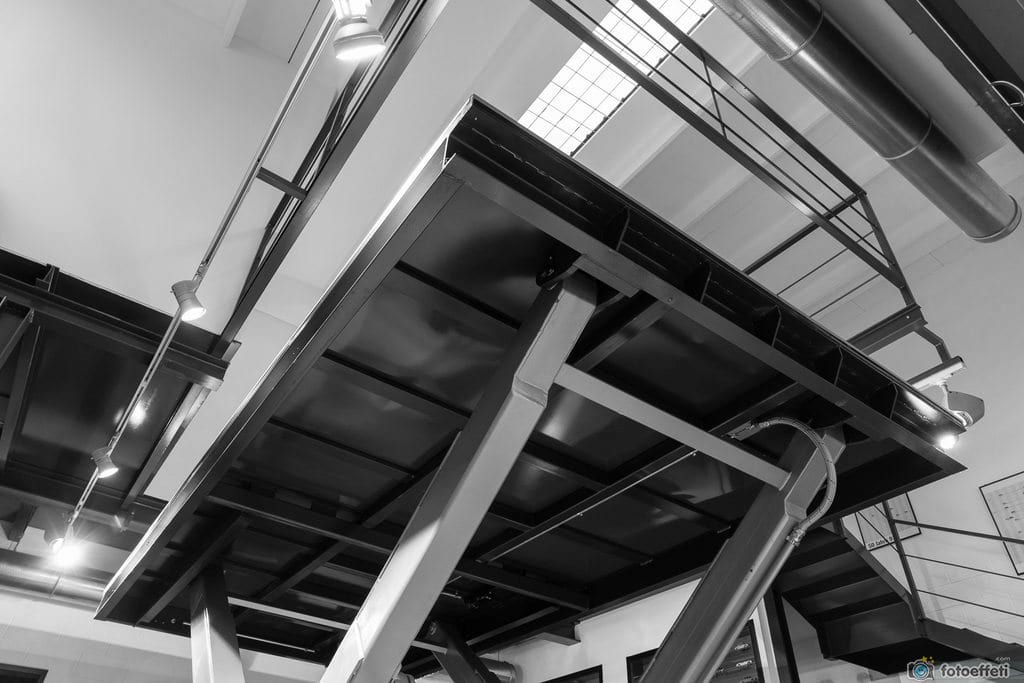

- Lower and upper base made of electro-welded steel beams

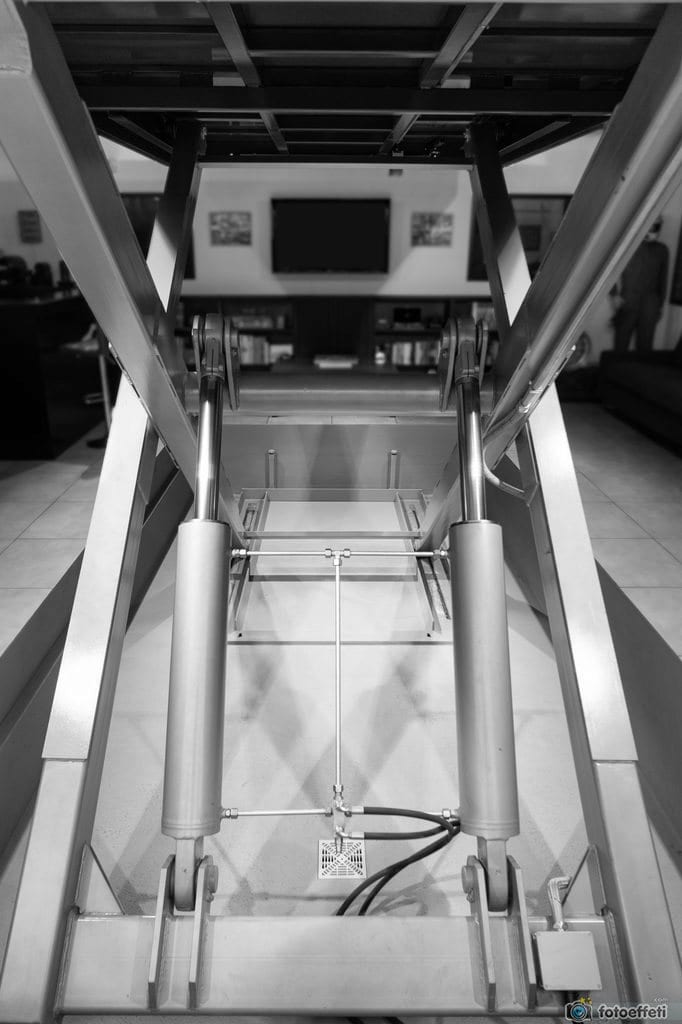

- Cruise pantograph driven by two hydraulic cylinders equipped with speed governor and fall arrest device, controlled by solenoid valve
- Platform with galvanized embossed sheet metal
- Lift operated by a PLC for control
- 7.5 kW control unit equipped with a by-pass solenoid valve
- Each floor stop is equipped with a recall button panel complete with emergency mushroom and presence light
