Description: rotating platform mechanical parking

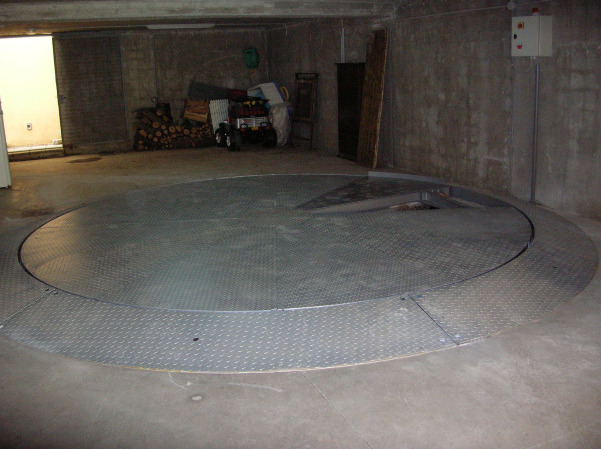

Turning platforms are systems that assist users in maneuvering in tight spaces. Mechanized parking of this type consists of a lower basement made from electro-welded steel beams, complemented by base plates and counter plates for fixing and leveling in the floor.
They allow rotation of the car through 360°, a rotation that can be done by an external hand control or by remote control while remaining inside the car.

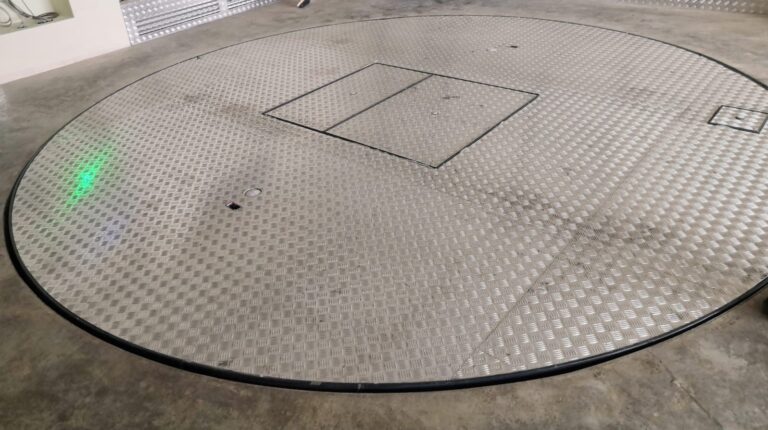

Each platform can be covered with sheet metal, or it is supplied with a tank for containing a floor, and in addition, according to the customer’s requirements, the system is treated with hot paint or hot-dip galvanizing processes. Motorization can be electric or electro-hydraulic, to allow for outdoor use.
Svecom Parking Solutions makes as many as two versions of turntables:
- one designed for display areas, which is to be installed above ground;
- the other used for car orientation inside or outside a building, which is made with a very limited height.
Technical features
- Platform width: variable according to compartment size
- Platform length: variable according to compartment size
- Useful capacity: 2500kg
- Technical pit: not required
- powder coating or hot-dip galvanizing on request
- directional hand control or remote control

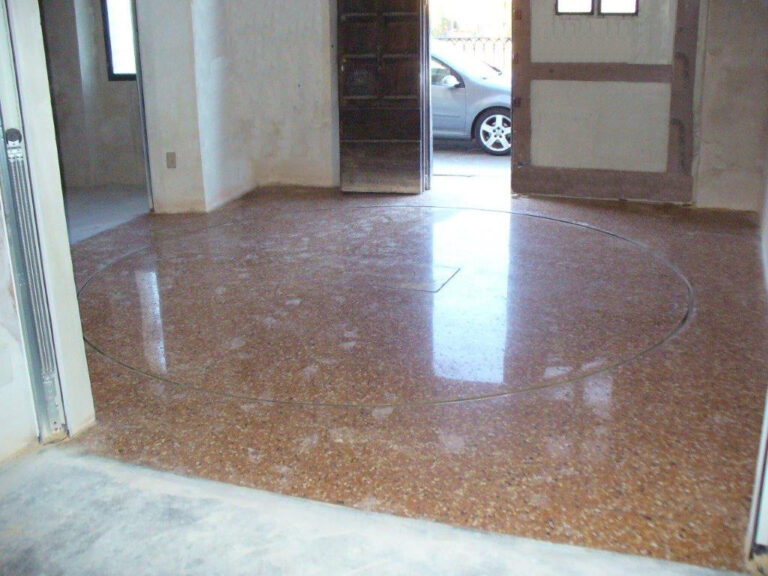

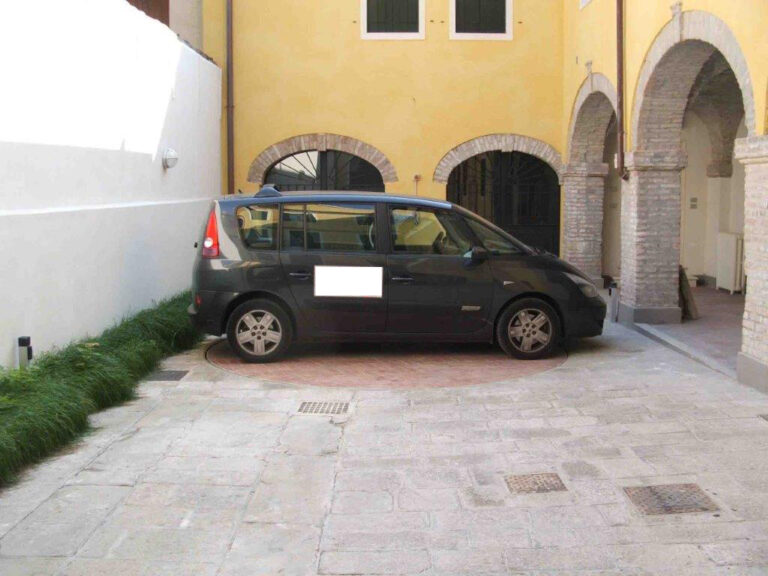

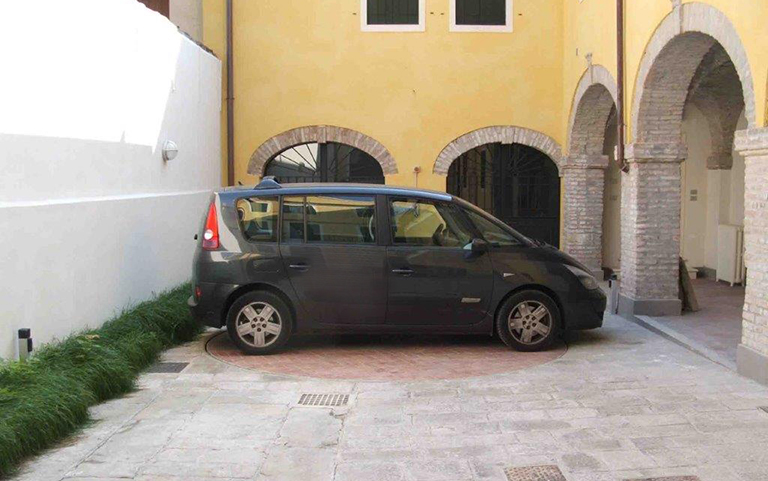

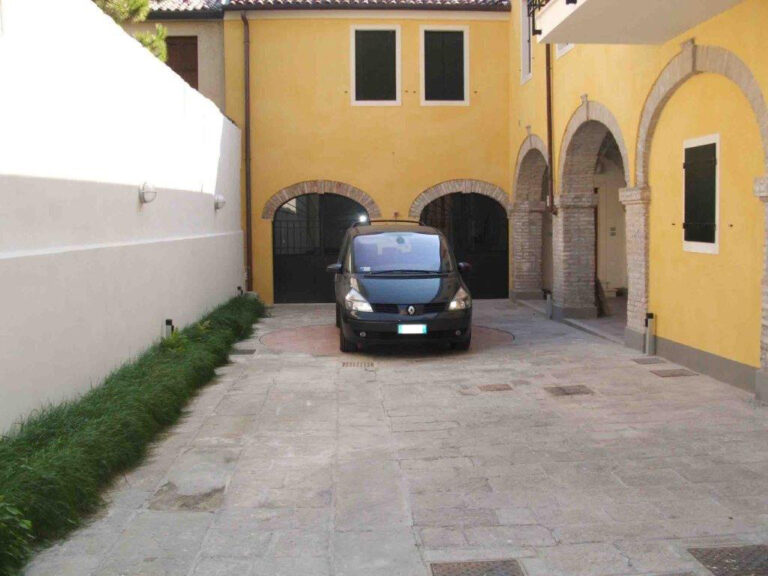

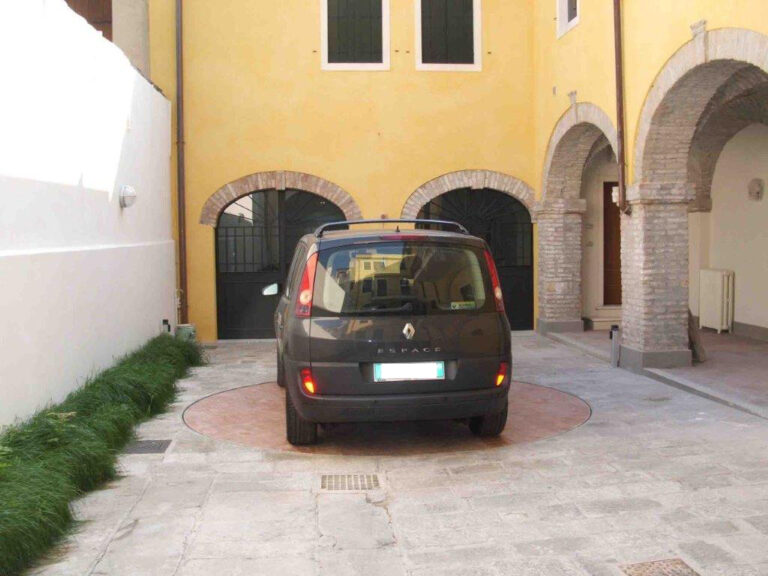

Realizations
