Description: car doubler for box
Simple and effective, the garage car doublers consist of two columns with a platform that allows you to lift a car and park the second one underneath. The lifting is guaranteed by two hydraulic cylinders, while two safety hooks ensure the platform is kept in position. The platform is moved using highly resistant runners, with self-supporting uprights firmly fixed to the floor to prevent overturning.
Technical features
- Platform width: 2100 mm
- Platform lenght: 4100 mm
- Useful capacity: up to 2700 kg with man on board system
- Technical pit: not required
- Power: 2,2 / 3 kW
- Increase of parking spaces in the same space originally intended for a single car
- Dependent procedure for removing cars
- Ideal for services such as car sharing, supervised parking, car rental and assistance
- Reliability ensured thanks to consolidated hydraulic technology
- Implementation of advanced operational and functional safety systems

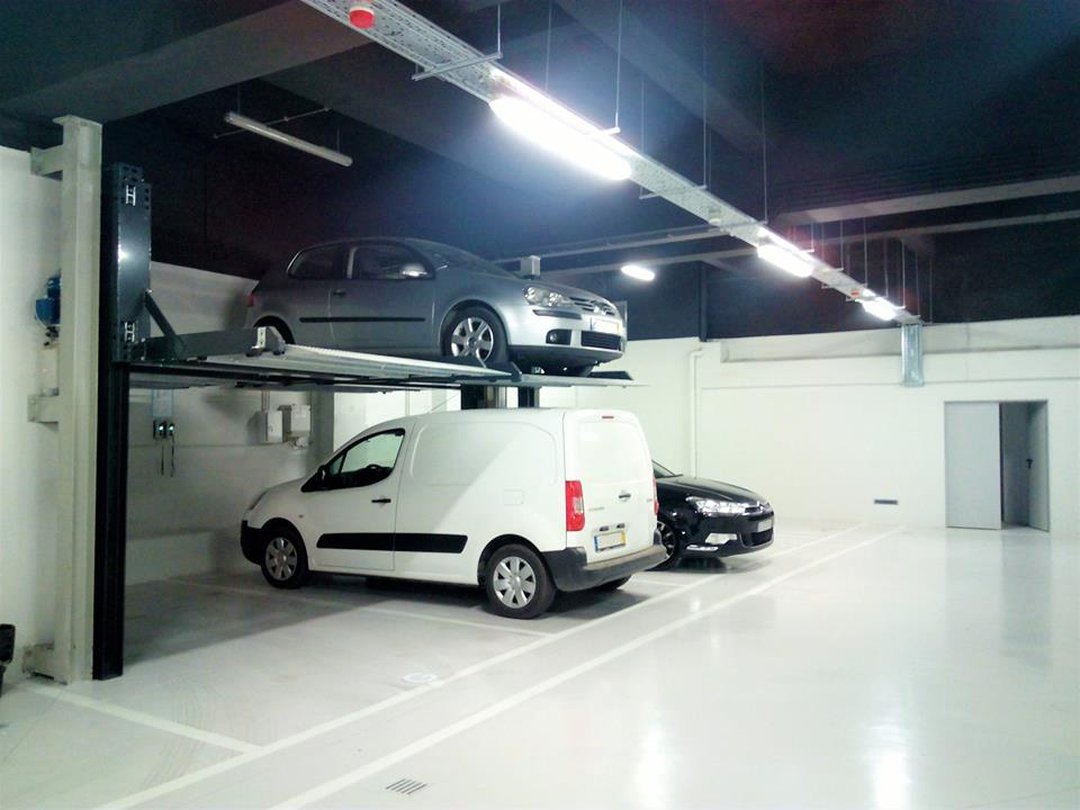

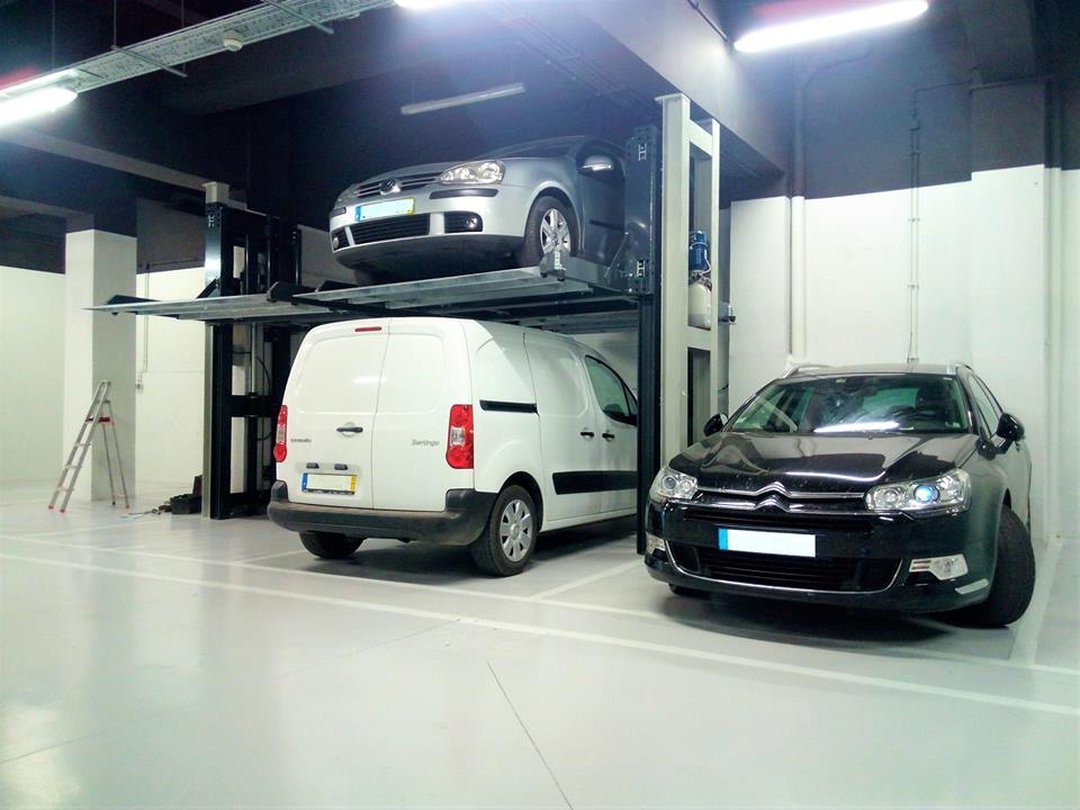

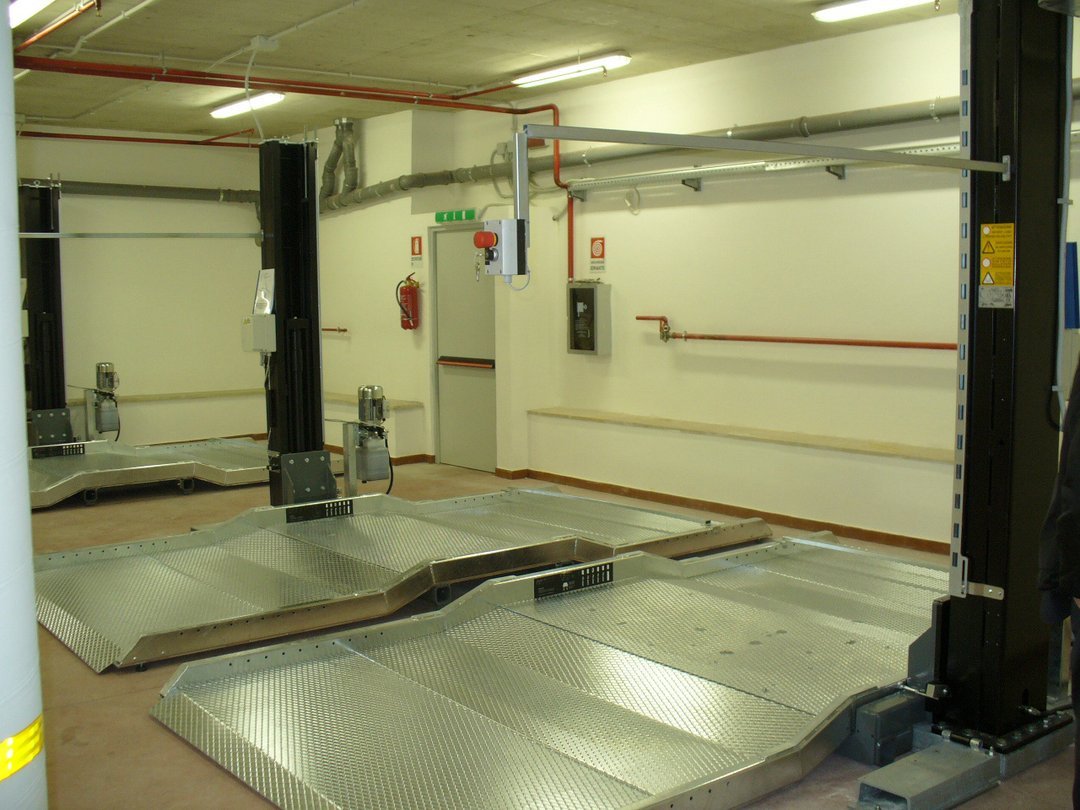

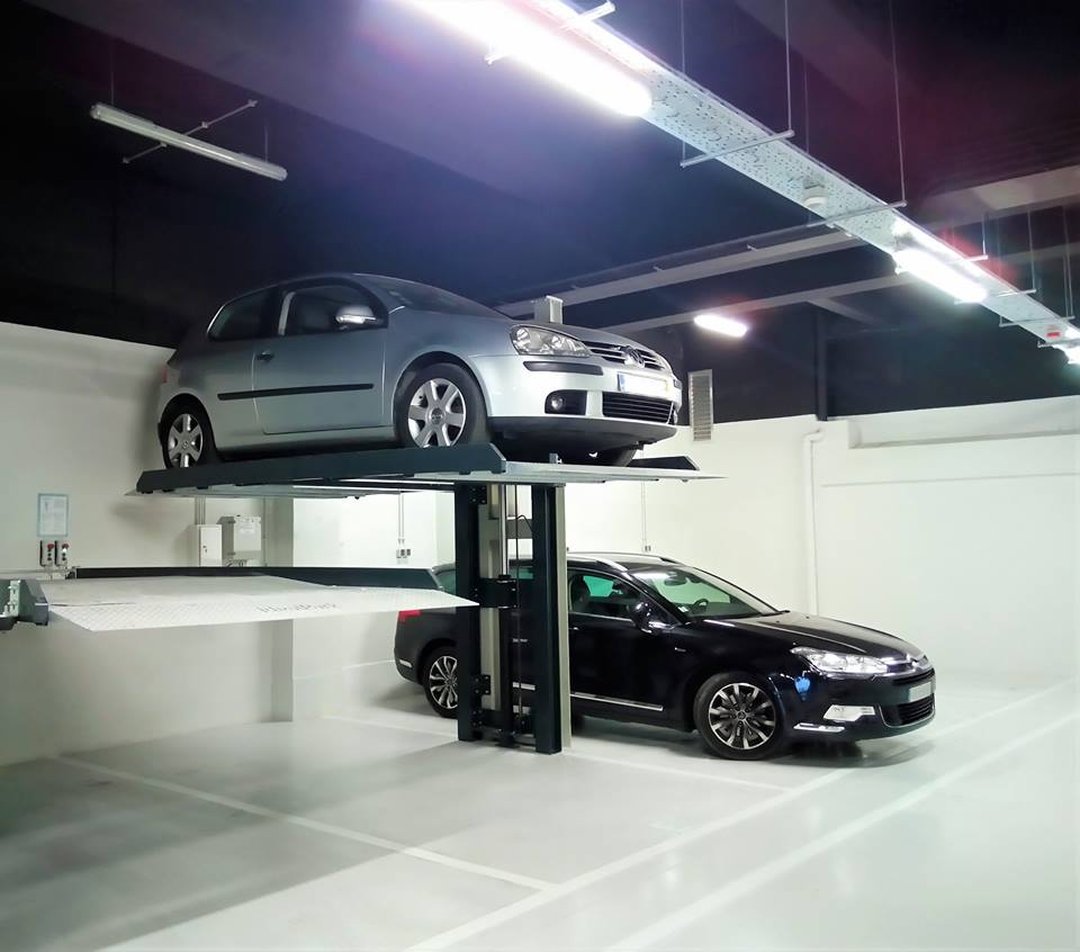

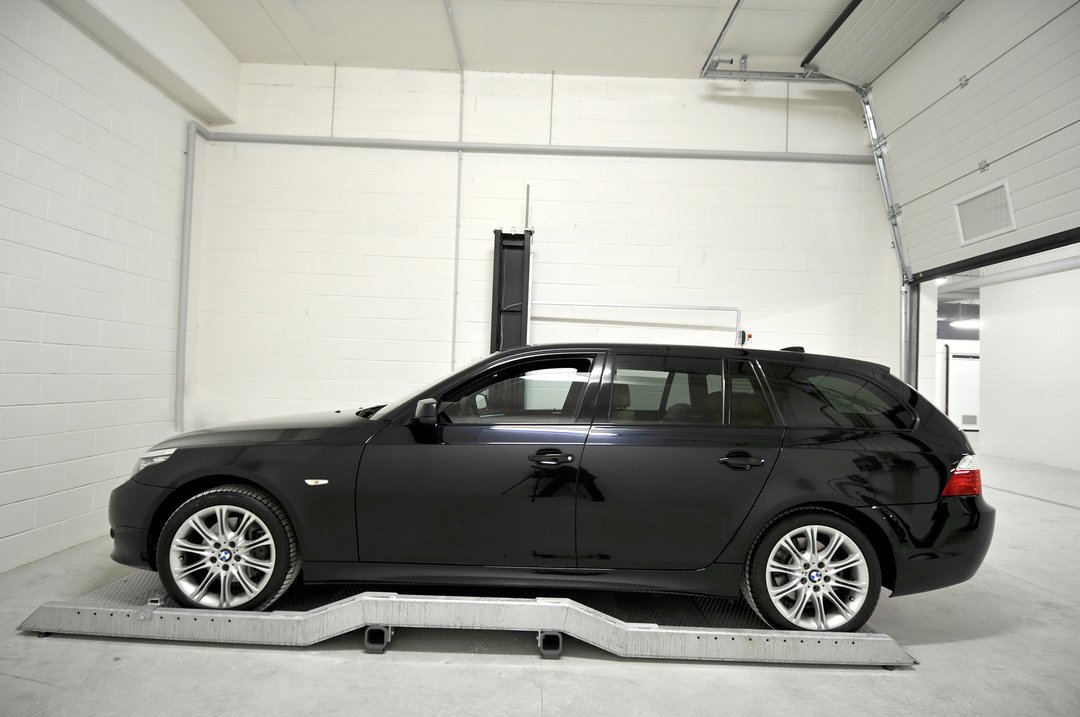

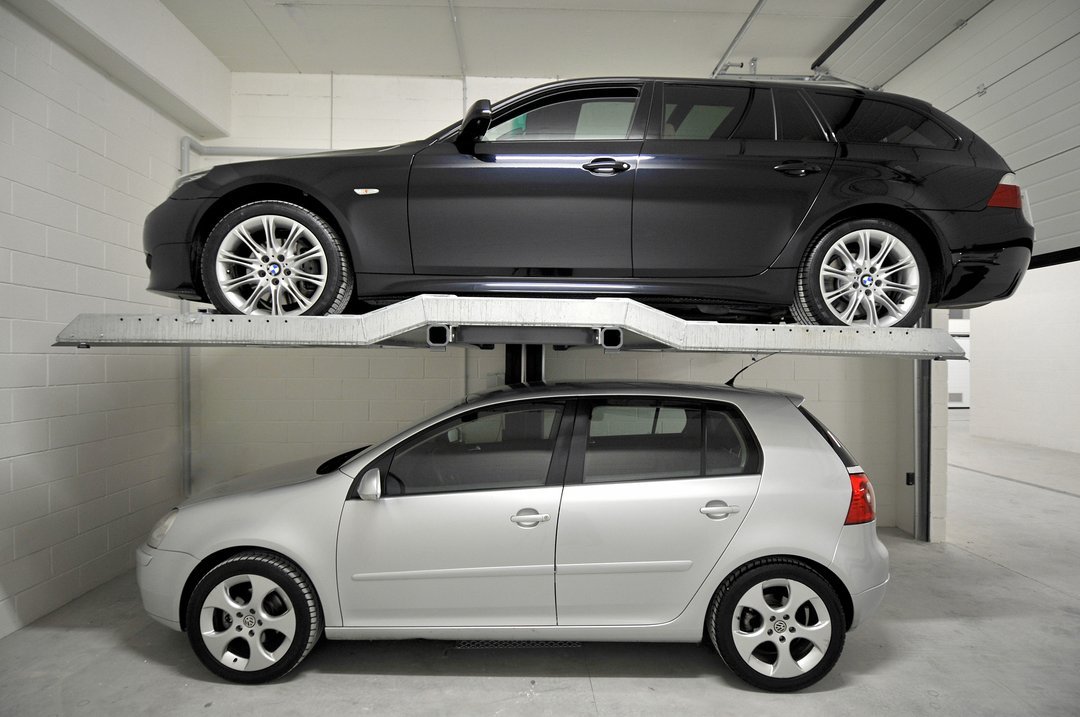

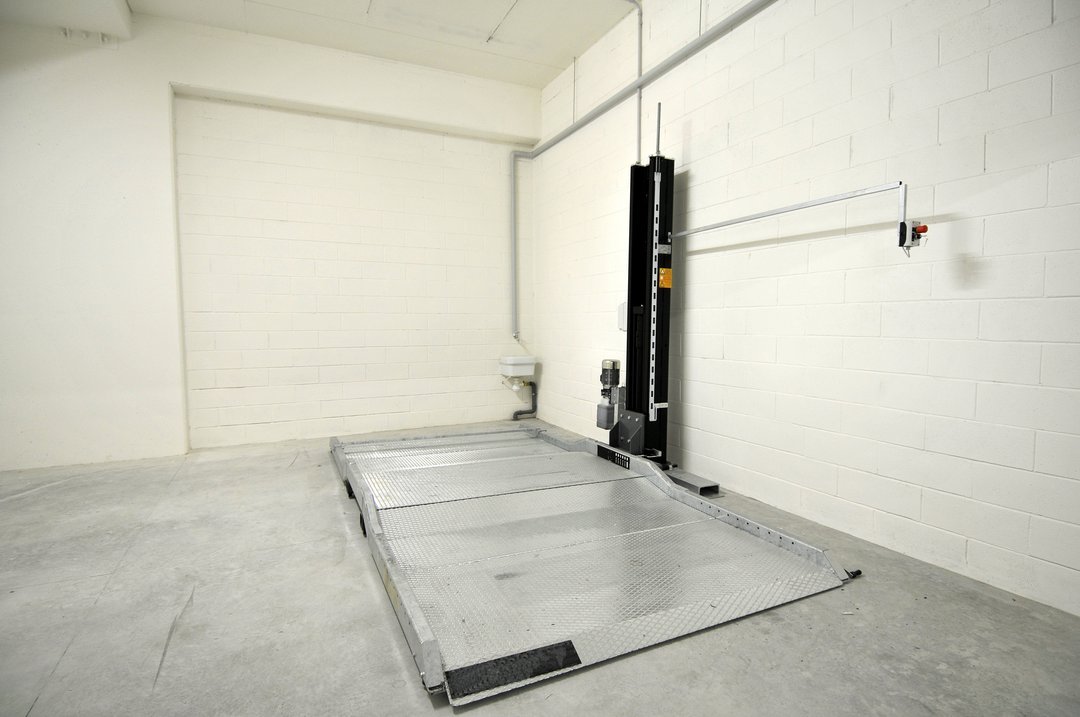

Realizations
