Description: cantilever car doubler

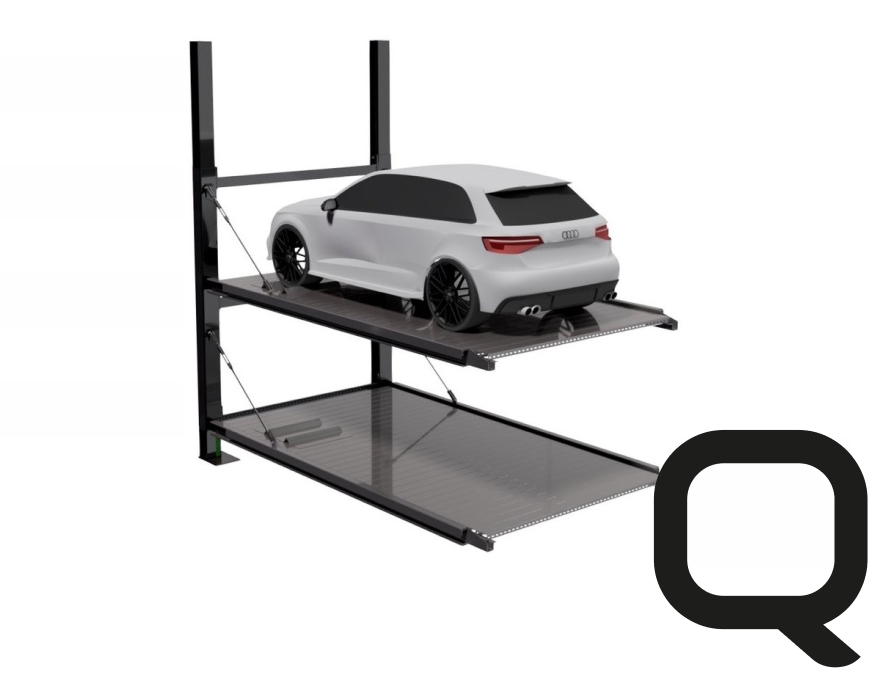

The cantilever is a type of doubler belonging to the category of independent parking, which means that it is not necessary to extract the car positioned under the lift to exit with the car, since the second platform allows the car to be parked hidden inside a specially created space. It consists of two columns fixed to the wall and a galvanized sheet metal platform that is raised in a cantilever manner. The platforms are lifted by two hydraulic cylinders, mechanically balanced by chains tied to the ends of the supporting shoulder. The structure is particularly convenient as it does not require side columns that create discomfort when entering and exiting the car.
Technical features
- Platform width: up to 2100 mm
- Platform lenght: up to 4100 mm
- Useful capacity: 2500kg
- Power: 5,5 kW
- Galvanized sheet metal platforms
- Use of hydraulic lifting system
- Self-supporting uprights fixed to the floor and upper structure to prevent tipping
- Controlled stop thanks to electronic and mechanical safety devices
